Technical Data

Model:NSD-10168SF   Capacity:720 litres

Max Load:750Kg

Internal Size:1500*800*817mm

External Size:2015*1220*2130mm

Frequency:25kHz

Ultrasonic Power:8.4KW

Heating Power:32KW

Functions

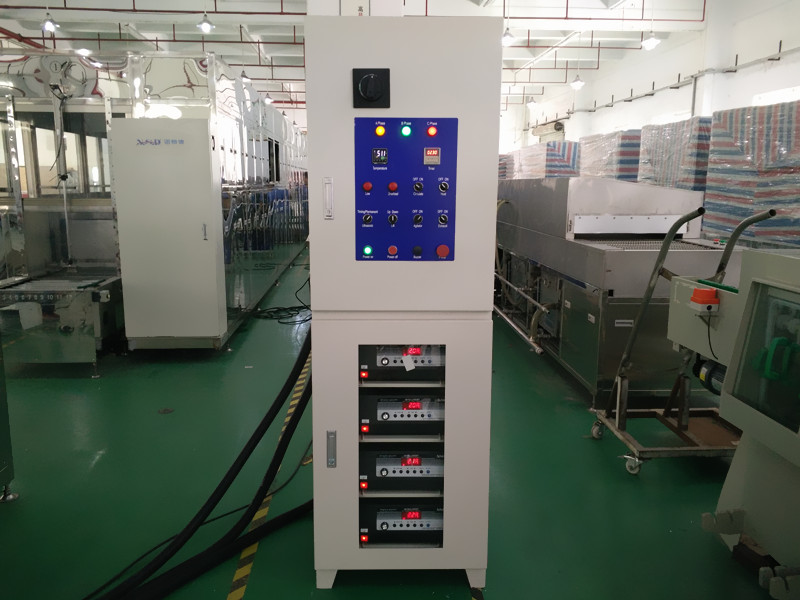

Ultrasonic/Heating/Agitator/Lift Platform/Filtration/Oil Removal/Independent Electric Cabinet

Features

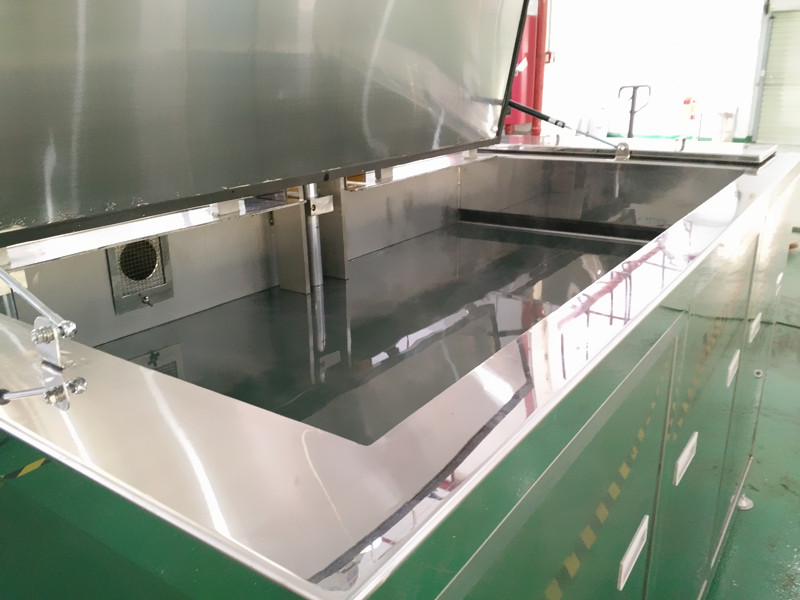

1. Tank built of SUS 304, 2.5mm-trick.

2. With reinforced pneumatic platform and strong frame for loading and unloading to 750Kg.

3. Integrated waterflow system, Removes the existing waste on the tank surface, keeping the cleaning equipment in perfect condition.

4. Filtration system (Stanless-Steel filter and filter core) for waste and mud.

5. Big capacity, to satisfy the large production volume.

6. With reasonable pipeline system, which contains air inlet, water inlet, oil exit and drain.
