TECHNICAL   DATA

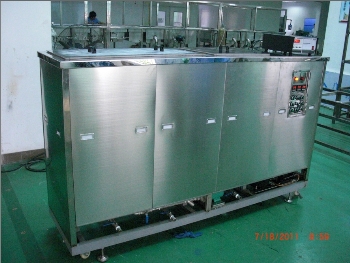

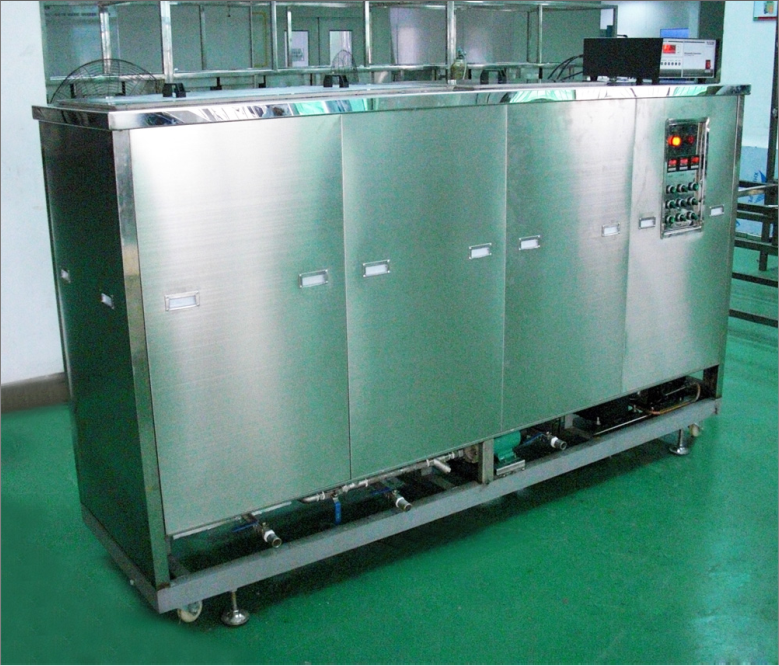

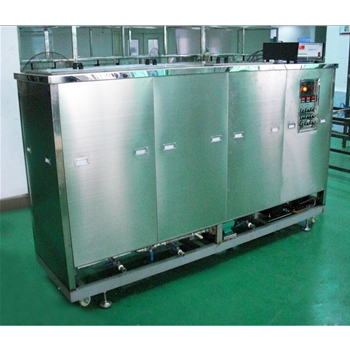

This series is designed for precision cleaning and ideal to remove organic contaminant, such as oils,grease,flux,rosin,fingerprints.
■All stainless steel construction for long-term reliability.
■Suitable for organic solvent such as IPA and TCE.

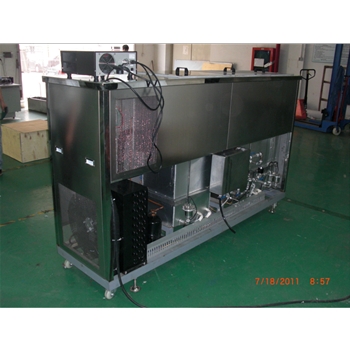

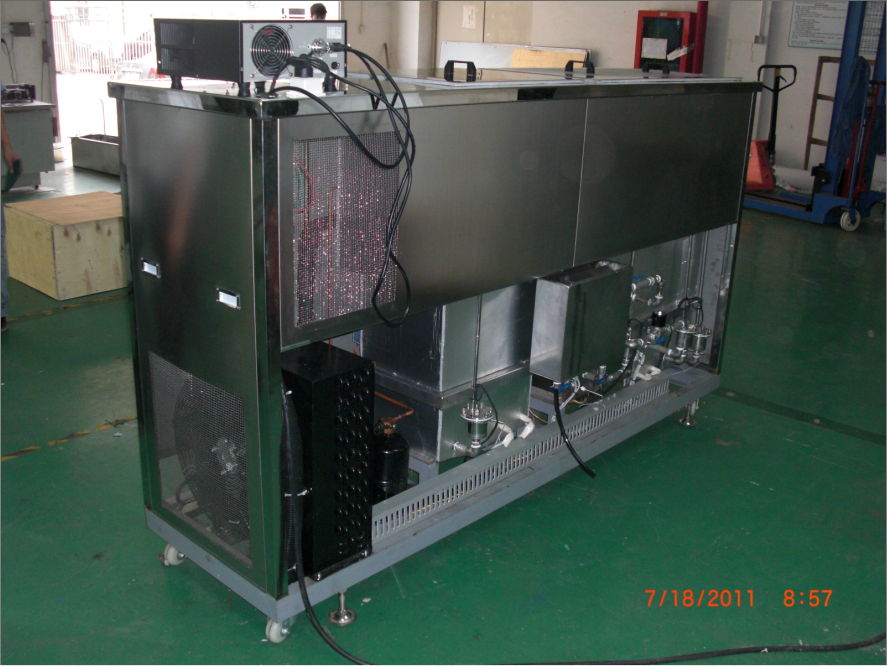

■Consists of 3 tanks(ultrasonic tank, vapor tank and vapor recovery tank ), ultrasonic traducers, generators, electric panel, control panel, heating system,refrigeration,filter&recycle system, drain valves and so on.

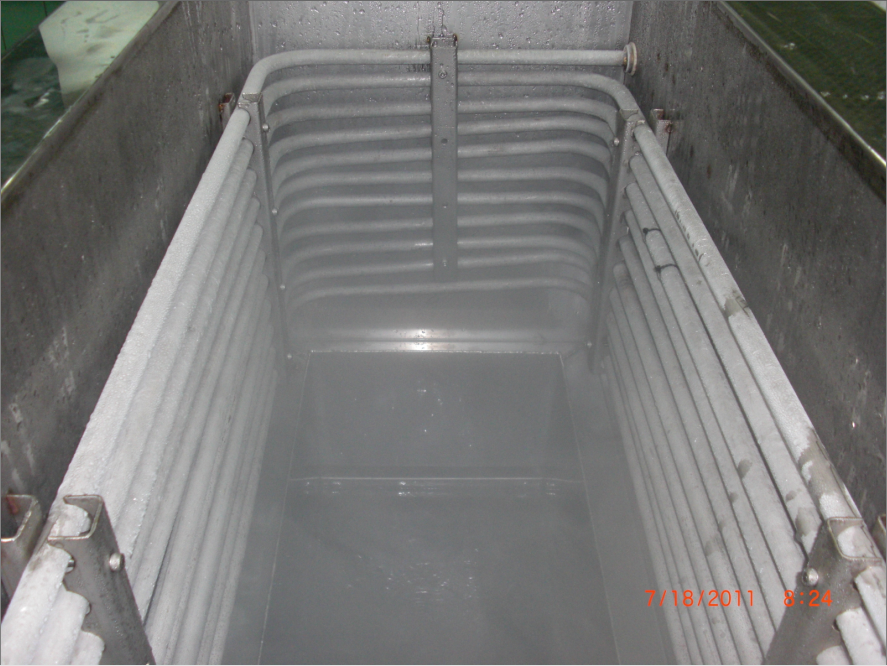

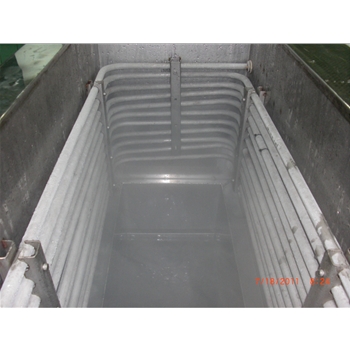

■Condenser pipes  to chill vapor.
■Removeable panels for easy maintenance
■Ultrasonic tank
Overflow weir and recycle solvent.
Low liquid level heater protection.
Pump and filter system
Thermostatically controlled heat/refrigeration system

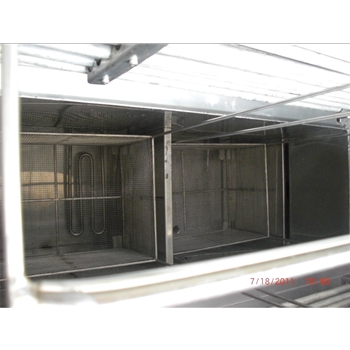

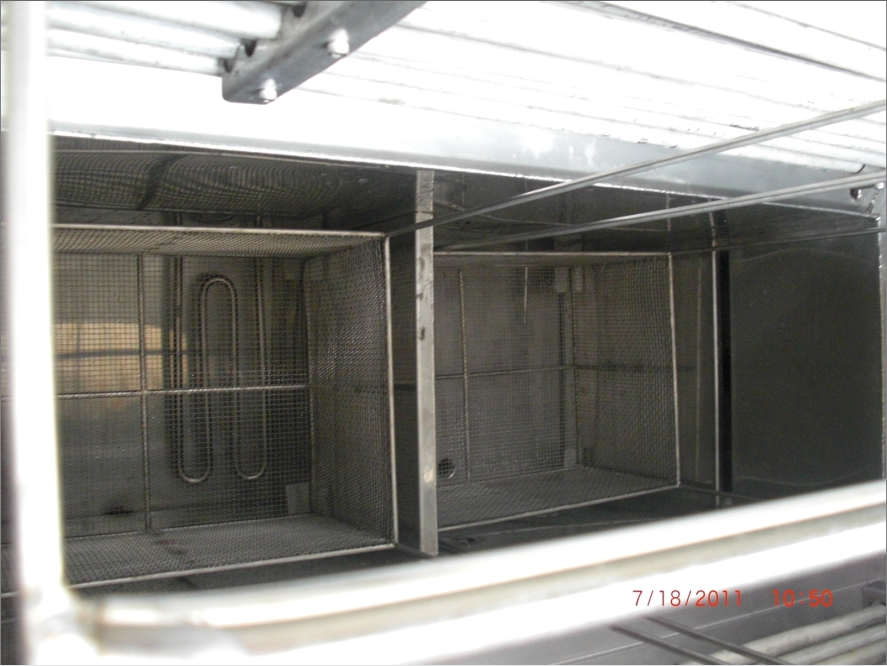

Vapor cleaning tank:
Thermostatically controlled heat/refrigeration system
■Vapor recovery tank: Overhead condensing tower to chill vapor.
■Tanks are covered by insulation cotton to keep warm
■Water seperator：Separate water from solvent

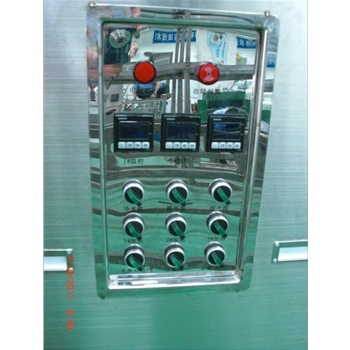

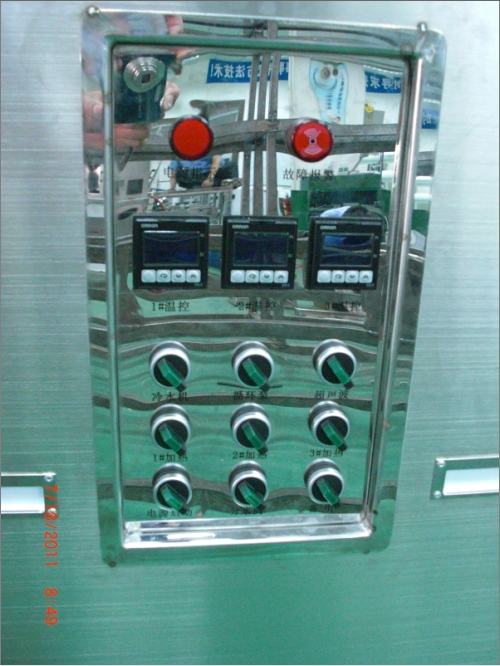

■Control panel
Digital temp control: Show actual/setting temp in each tank.
Buzzer: Ringing when there is fault on equipment.
Start/stop:Ultrasonic,Heating,Power,Pump

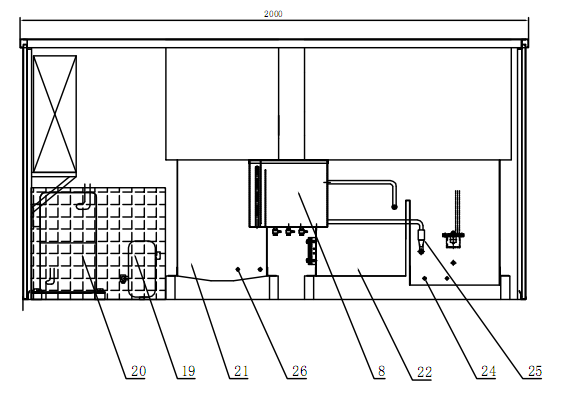

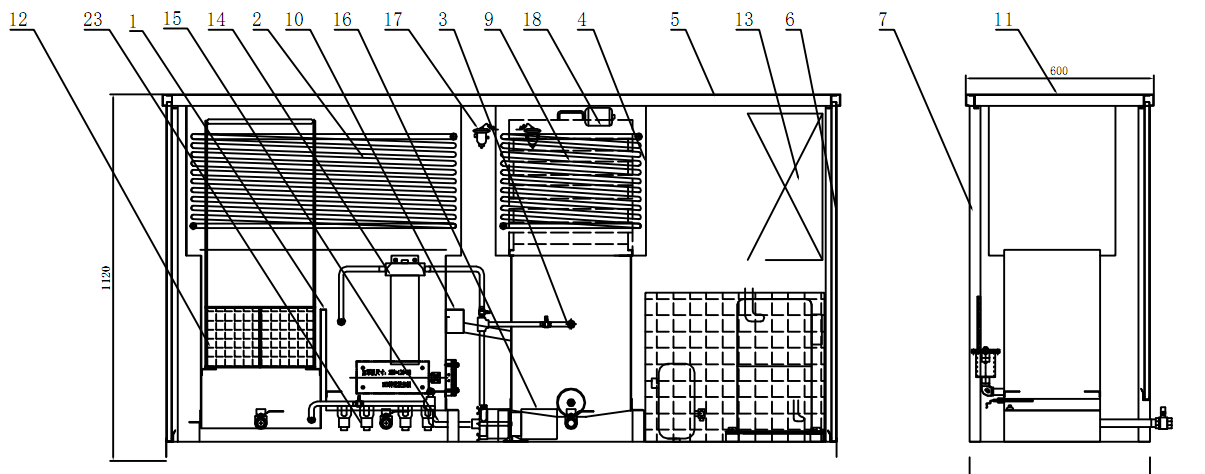

1.Ultrasonic tank                               2. Condenser pipes
3. Vapor recovery tank                     4. Condenser pipes
5. Tank surface                                 6. Frame
7. Casing                                           8. Water seperator
9. Condenser tower                          10. Overflow box
11. Lid                                              12. Basket
13. Electric panel                               14. Filter
15. Y type filter                                 16. Pump
17. Expansion valve                          18. Drier filter
19. Storage tank(3HP)                      20.Refrigeration
21.Level box                                     22.Heat broad
23. Tranducer                                   24.Heat pipes
25.Solenoid valve                              26.Heat pipes in recovery tank
